Bobber Style Tail & Indicator Lighting

I have got my bobber style side number plate, mini bates tail lamp and mini led laser indicators.it took us quite a while to figure out the wiring , blew a fuse.

Lucky i got some guidance from the xlforums,else it would take us a lot more time.

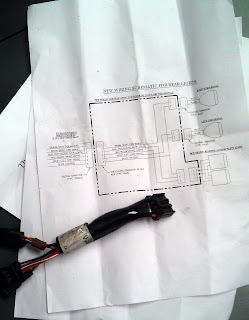

Rear Lights Main Harness Connector

You will need to unplug the main harness from the rear module and then will need to figure out which cable does what. after that we soldered the wires according to the colours and used electrical tape to keep them clean and uncluttered.

Rear Tail/Indicator , License plate light connectors

these are the individual connectors to the indicator lights and the rear number plate light.you could also remove the existing connectors from the tail lights and use them to plug into these modules.but I prefer hard-wiring them.
